It has been a pretty busy month! Well, closer to 2 months truly since my last set of blog posts were at the start of April. I usually focus on one topic in a blog post, but I've been a bit all over the place this month, so I thought a recap of what open source work I've been doing would be fun.

Table of Contents

• at://2048
• ATProtocol Shenanigans
  • Ripping private keys from a PDS
  • Backfilling missed records
  • atrium template
  • did:web proxying
• Working On Teal
• A rusty TRMNL
• Closing

at://2048

About 2 months ago my new phone came in. It is a Minimal Phone. It's an e-ink phone with a physical keyboard. The attraction to it is it runs android, so I have full access to the apps I need for work and to be social with irl friends and online friends. But since it is e-ink it cuts down my usage and makes everything feel much more purposeful. Well with it being e-ink I found playing the (now classic) 2048 puzzle game perfect for the device when I had time to kill. But in the versions I tried, I found myself wanting WASD keybinds since my phone had a keyboard and reduce animations for the screen. Well, as everyone has probably thought at one point or another, I thought why don't I make one. So I did.

Since I had just done a Rust version of Statusphere and created esquema(A fork of atrium's lex code gen so it can be used as a cli). I thought it would be a lot of fun to make it on the atmosphere. Maybe even bring back some of that fun exploration of when FaceBook was getting big and doing all the social media games.

The main features I wanted out with what I'm calling v0.1 were:

• Actual game play
• Stats
• OAuth login for atproto so it will all be client side
• Store your games and stats to your atproto repo
• History View to see previous games and to help resync any high scoring games that may of failed to sync

v1.0 is going to be the actual "social" features.

• Global Leaderboards
• Friends(mutual) Leaderboards
• A feed to see when people get achievements or their recent games
• Chess like titles, but for 2048 that is applied via labels

The alpha of at://2048 has been out for about a month now. I've been pretty proud of how it has turned out! And the feedback has been great. It has been awesome to see so many people play it and have fun. Adding the share button was the best idea because it has been rewarding to see people share their games with friends and having fun. I think I got most of the major bugs out of the way and the initial goals reached. As of writing this post, 180 accounts have played and published an at://2048 game to their atproto repo, and a total of 3,499 games have been published.

I am going to come back and finish out the leaderboards and social feeds, but I needed a bit of a break and to look at some other codebases for a bit. I expect to start on the appview in June.

ATProtocol Shenanigans

For the past couple of months I've reallly gotten into ATProtocol. To me it's a well thought out way to build public applications and has a great community of developers. So to learn more about it I have been doing a bit of a deep dive into the docs and other atproto projects. I thought I would highlight some of the more interesting things I've learned.

Ripping private keys from a PDS

After the first meeting with #IndieSkyWG talking about PDS migrations and backup, I got curious about that in a nontraditional way and how that data is kept on the PDS side. What I learned was that the verificationMethod:publicKeyMultibase is the public key to a keypair just for your account that is used to sign JWTs for accessing your PDS and is also what is used to sign your PDS repo (all those CIDS). These are saved on your PDS at /pds/actors/{number not sure meaning}/{your did}/key. This is the keypair bytes you can load up to an atproto crypto library to sign various operations. And since this is just a file, you can SSH in and copy it out if you have access to your PDS. Then you have the private key and can use it for whatever you want. Here's an example in rust using atrium-crypto to read and parse the key from the file.

use atrium_crypto::keypair::{Did, Secp256k1Keypair};

const KEY_BYTES: &[u8] = include_bytes!("../key");

fn main() {
    let key_from_my_pds = Secp256k1Keypair::import(&KEY_BYTES).unwrap();
    let public_key = key_from_my_pds.did();
    println!("Public did:key {}", public_key);
}

Then I also learned Rotation keys are public did:keys used to prove you are you when submitting a change to your DID Doc, which your DID doc is your “true identity.” These can be keypairs created from your PDS or you created on your own. It is recommended to upload at least one in the event your PDS goes down so you can prove it’s you when submitting changes to DID docs. On the PDS you can find the private key hex for the rotation key for the PDS at /pds/pds.env not clear on where they go if you submit one though. I have not tested that yet.

Backfilling missed records

I was wanting to release at://2048 all at once. An appview with leaderboards and the actual game play. But I quickly realized I was hitting feature creep, and honestly, I was at the point I was ready to have something out there so I could get some feedback. One of my biggest fears was I thought I needed to have a Firehose/JetStream listner running so my appview could collect the blue.2048.game records. Turns out that was not a concern at all.

I was originally thinking I would have to wait till a new record was created and then retroactively go and check their PDS to pick up any previous games. Turns out I don't have to do that either. ATProtocol already thought of that and have a solution.

I found the com.atproto.sync.listReposByCollection, which you can call on a relay (like relay1.us-west.bsky.network) to get a list of user repos that have that lexicon. Then you know which repos to call to check for the records to backfill your appview. Here's the url for 2048.blue.game's records. https://relay1.us-west.bsky.network/xrpc/com.atproto.sync.listReposByCollection?collection=blue.2048.game

atrium template

I also took some time this month to create an atrium template to help people jump start their rust atprotocol projects. It is divided up between 4 crates. This came from about the 3rd time I had copy and pasted a similar project to run atprotocol experiments and decided others may like to have it as well.

• atproto_api - This holds the generated lexicon types and XRPC clients created with esquema-cli.
• logic - This holds the logic for the atproto app. Things like getting and reading records and allows you to share the logic betwene multiple crates.
• cli - is an example binary showing a simple cli app to demonstrate getting and writing records.
• wasm - is an example web app in Rust to show how you can share the same logic with the cli thanks to the logic crate.

It also has a quick JetStream listener implementation that works on WASM web targets that is pretty neat to see all happening in the browser.

did:web proxying

I recently learned something pretty cool that I had missed. When making requests to a PDS if you set the atproto-proxy header to a did:web with an endpoint identifier it will reroute the request to that service as long as it's prefixed /xrpc/. I am going to use teal.fm as an example since how their appview is setup to be accessed.

So for teal.fm you would set a header like this: atproto-proxy: did:web:notreal.teal.fm#teal_fm_appview

That will then check the web address https://notreal.teal.fm/.well-known/did.json and expect a did.json about like this

{
  "@context": [
    "https://www.w3.org/ns/did/v1"
  ],
  "id": "did:web:notreal.teal.fm",
  "verificationMethod": [
    {
      "id": "did:web:notreal.teal.fm#atproto",
      "type": "Multikey",
      "controller": "did:web:notreal.teal.fm",
      "publicKeyMultibase": "zQ3sheEnMKhEK87PSu4P2mjAevViqHcjKmgxBWsDQPjLRM9wP"
    }
  ],
  "service": [
    {
      "id": "#teal_fm_appview",
      "type": "TealFmAppView",
      "serviceEndpoint": "https://notreal.teal.fm"
    }
  ]
}

It will then grab the service with the id #teal_fm_appview and reroute the request to that endpoint. So the cool thing about this is your client can just have a did:web set in preference and using atprotocol will always know how to route the request to the appview. Plus it's a pretty cool way to allow clients to pick which appview they want to use if there's a fork.

Working On Teal

I've sort of been looking for an atproto project that I could start making weekly contributions to help out in. Mostly, I've just have learned a lot more about the protocol, and I wanted to give back to the community as a whole in some way. There's a lot going in the world right now, and although nothing I am doing is changing the world in a real way, it feels good to give back in someway and help where I can.

A couple of weeks ago I made a post about wanting to try out last.fm to have some stats of the music I've been listening to. Well @daniel roe replied to wait on teal.fm

Well, it kind of hit me then. Why wait? teal.fm is open source, I could start today. I like the team working on teal.fm, and it's a project I would really like to have. So it just clicked here was a project I could help out with. Which is the cool thing about open source. So since then I've decided to dedicate a few hours a week helping out where I can.

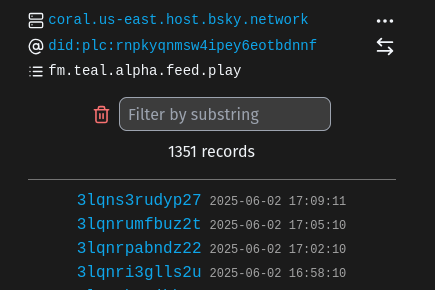

I've mostly been helping with piper the music scaper for teal.fm. It has been a lot of fun! It also has given me a chance to learn a bit of Go since that is the language it is written in. But since working on teal i've also been running piper most of the time I'm at my computer and now have 1,351 fm.teal.alpha.feed.play records on my PDS.

I also have a PR submitted to get the whole teal.fm stack running locally with a docker compose. I am hoping is it makes it a bit easier for developers working on one section of the stack to get up and running.

Working on teal.fm has been a lot of fun. I am hoping to put a good chunk of my free time this summer into helping with the project.

A rusty TRMNL firmware

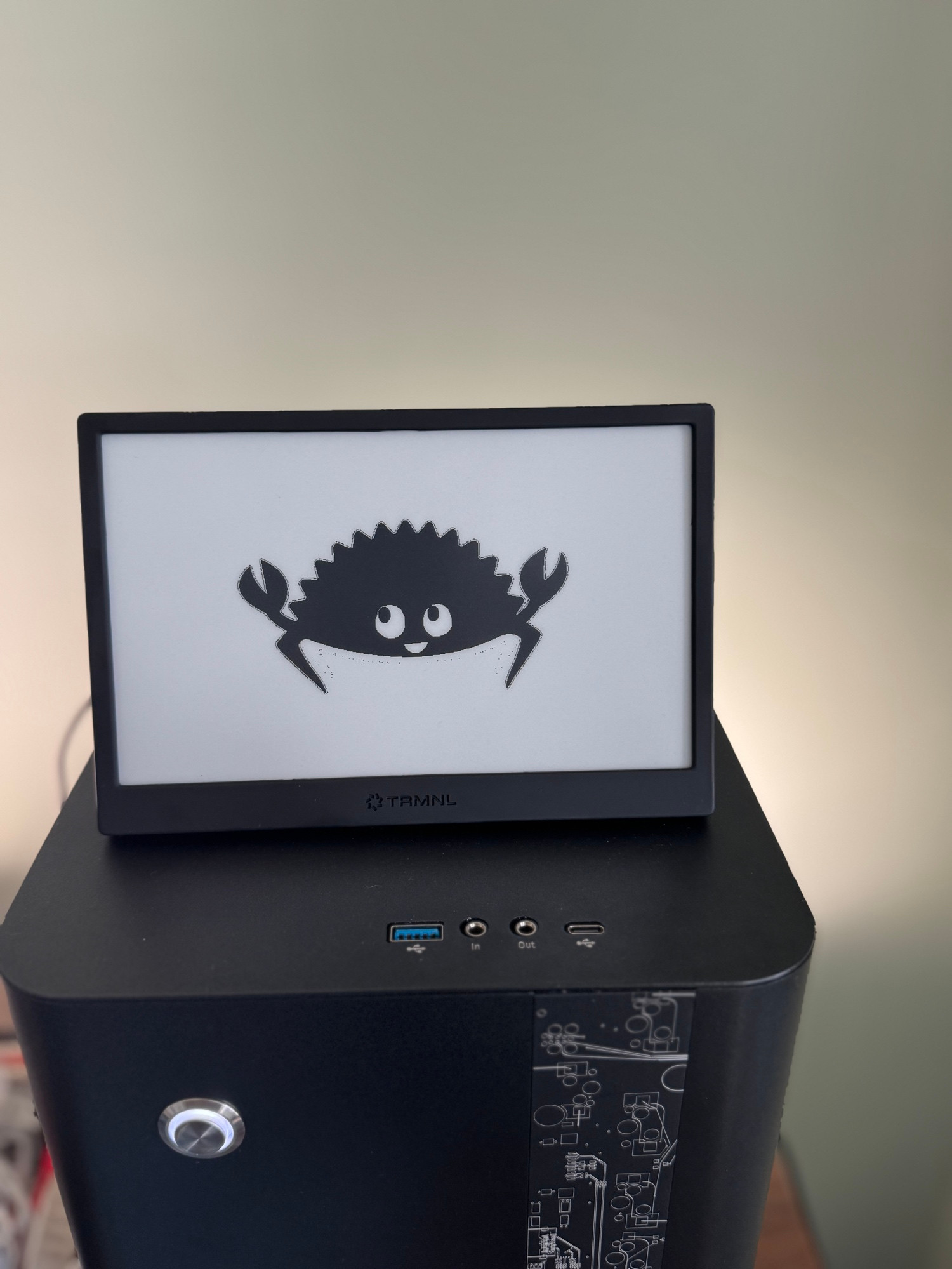

My TRMNL came in this month! I have been pretty excited about getting this device. If you have not heard of the TRMNL it is a esp32 e-ink display that you can use premade plugins or even write your own. It is a really cool device, and they have made the firmware open source as well as alternatives to hosting platforms for the plugins.

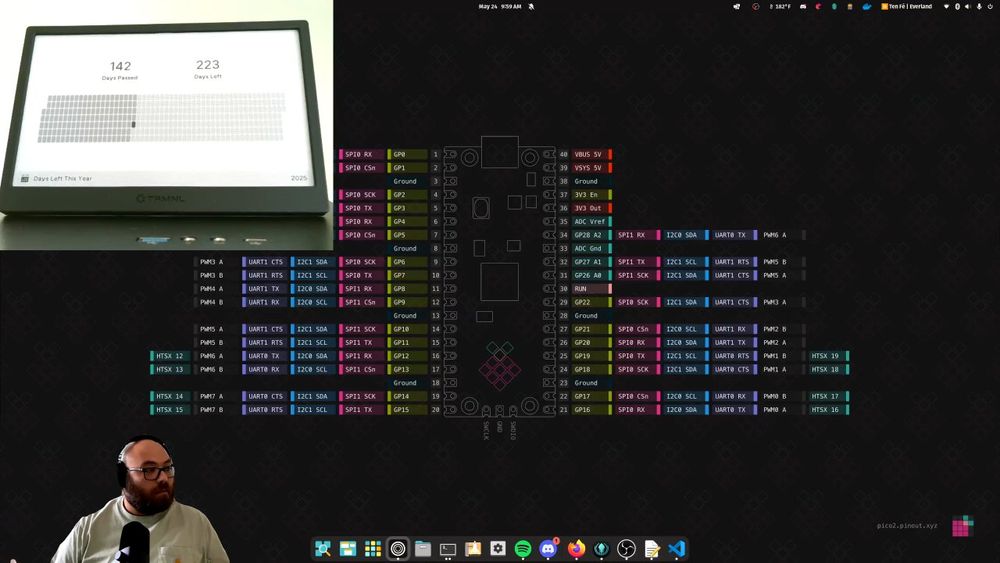

I decided since this was a device that used a WaveShare epd screen, and I am pretty familiar with them, it would be a good chance to try out stream.place

It was a lot of fun! I did not get the full firmware completed, but we did finally get a static BMP image showing on the screen and web requests to their servers.

Sadly, a few days later my desktop crashed, so I have not yet had the time to open sourced the firmware, or uploaded the stream recording yet. But I am hoping to do that sometime in June. I may also do a longer blog post just about it and writing the firmware for it. But if you are thinking about getting a TRMNL, you can use my discount code of bt15 to get $15 off your order!

Closing

It felt like a really long month! Or at least a busy one. I feel like I learned a lot this month and got to work on a variety of projects. Next month I will be on vacation for a bit so may not get as much done, but I am hoping to work on the TRMNL rust firmware, at://2048's appview, and make some contributions to teal.fm.

Thanks for reading!
